Free sliding pot bearing

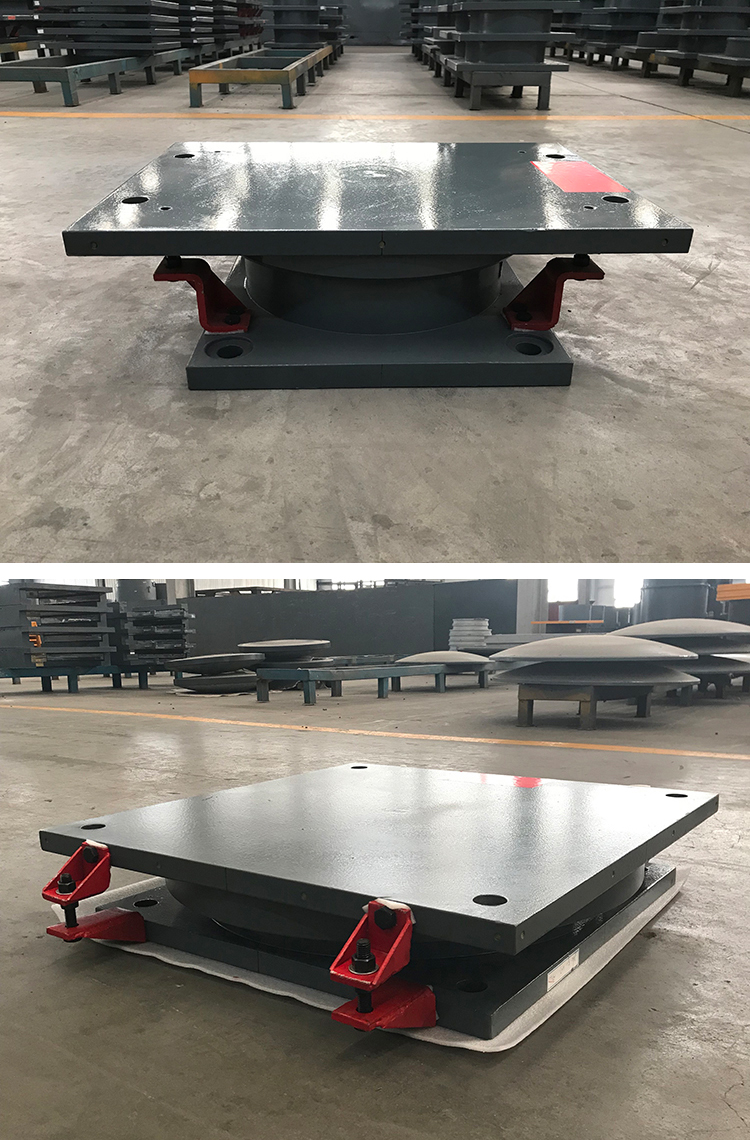

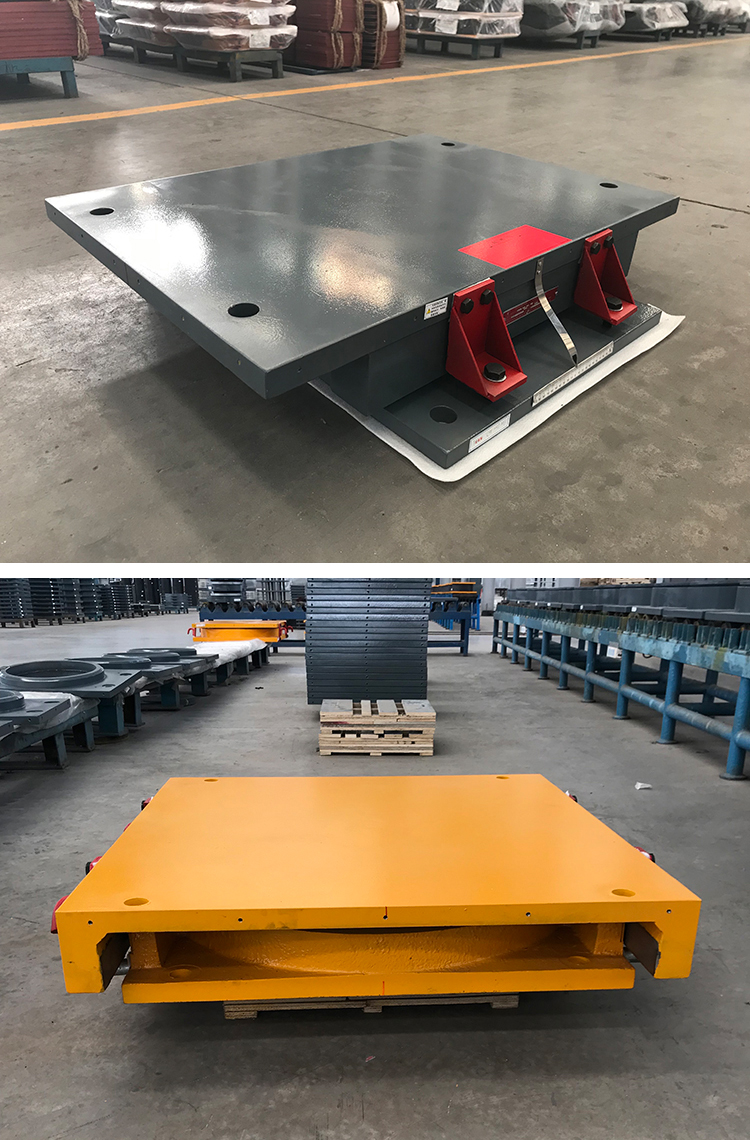

Free sliding pot bearing can be movable in all directions. The added PTFE and stainless steel sliding surface between the piston and the sole plate creates a bearing assembly that allows horizontal movement in any direction.
Standard:
EN 1337, AASHTO, BS 5400 or AS 5100
Structure:
Technical Performance:
| Item | Performance Parameters |
| Vertical Load Capacity | 1.0MN, 1.5MN, 2.0MN, 2.5MN, 3.0MN, 3.5MN, 4.0MN, 4.5MN,
5.0MN, 5.5MN, 6.0MN, 7.0MN, 8.0MN, 9.0MN, 10.0MN, 12.5MN, 15.0MN, 17.5MN, 20.0MN, 22.5MN, 25.0MN, 27.5MN, 30.0MN, 32.5MN, 35.0MN, 37.5MN, 40.0MN, 45.0MN, 50.0MN, 60.0MN, 65.0MN, 70.0MN , other design values. |
| Horizontal Force Capacity | 10% , 15% or 22.5% of the vertical load capacity of the bearing and other design values . |
| Design Rotation Angle θ (rad) | Not less than ±0.02 rad |
| Design Displacement | Transverse direction: ±50mm, other designs.
Longitudinal direction: ±50mm, ±100mm, ±150mm, ±200mm, ±250mm, other designs. |
| Suitable Temperature | Normal Type (CR): -25℃~+60℃;
Cold-resistance Type (NR):-40℃~+60℃ |
| Friction Coefficient μ | Not great than 0.03 |
| Strength Grade of Concrete | Not lower than C40 |
